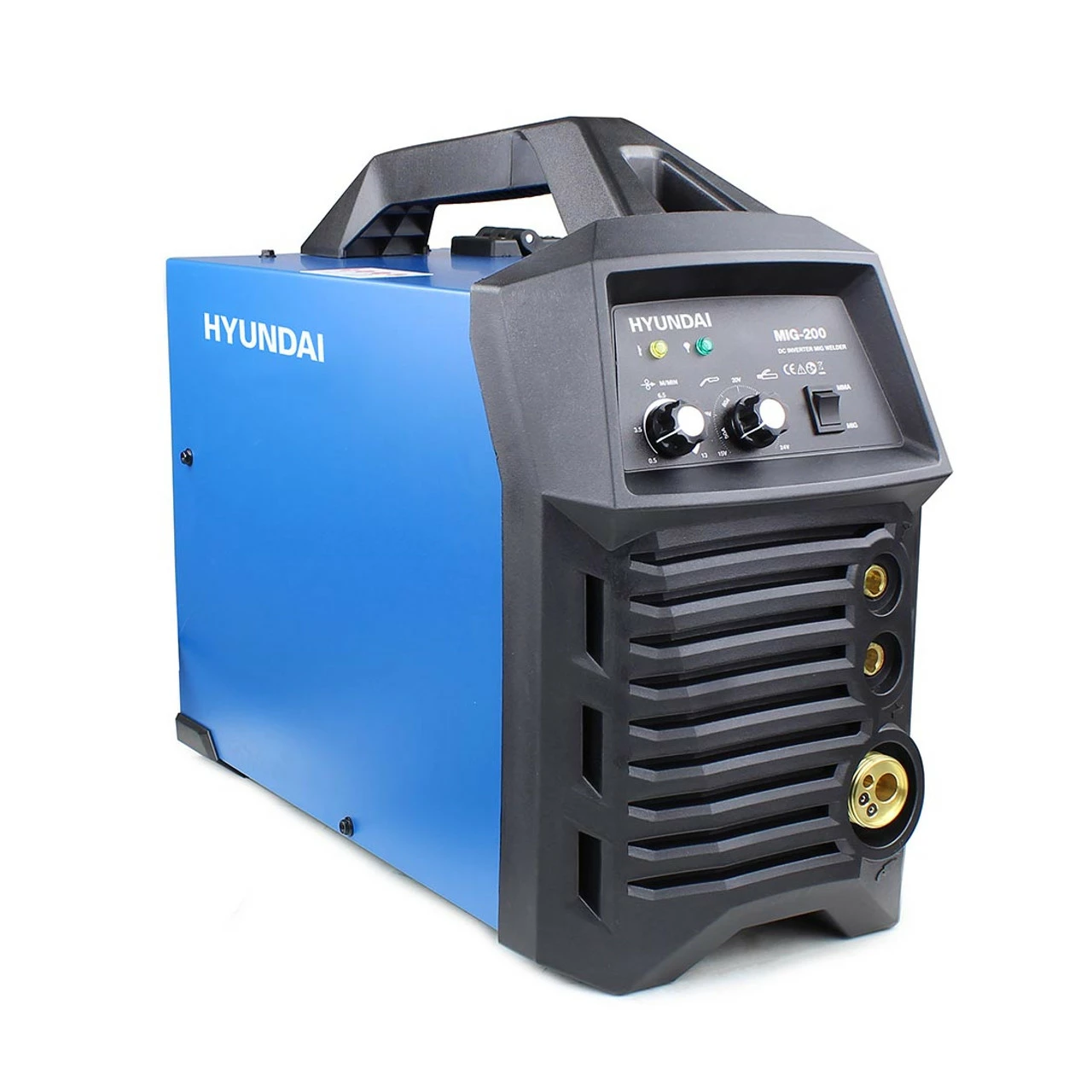

Hyundai HYMIG200 MIG/MMA(ARC) Inverter Welder 200Amp 230V

Hyundai HYMIG200 MIG/MMA(ARC) Inverter Welder 200Amp 230V

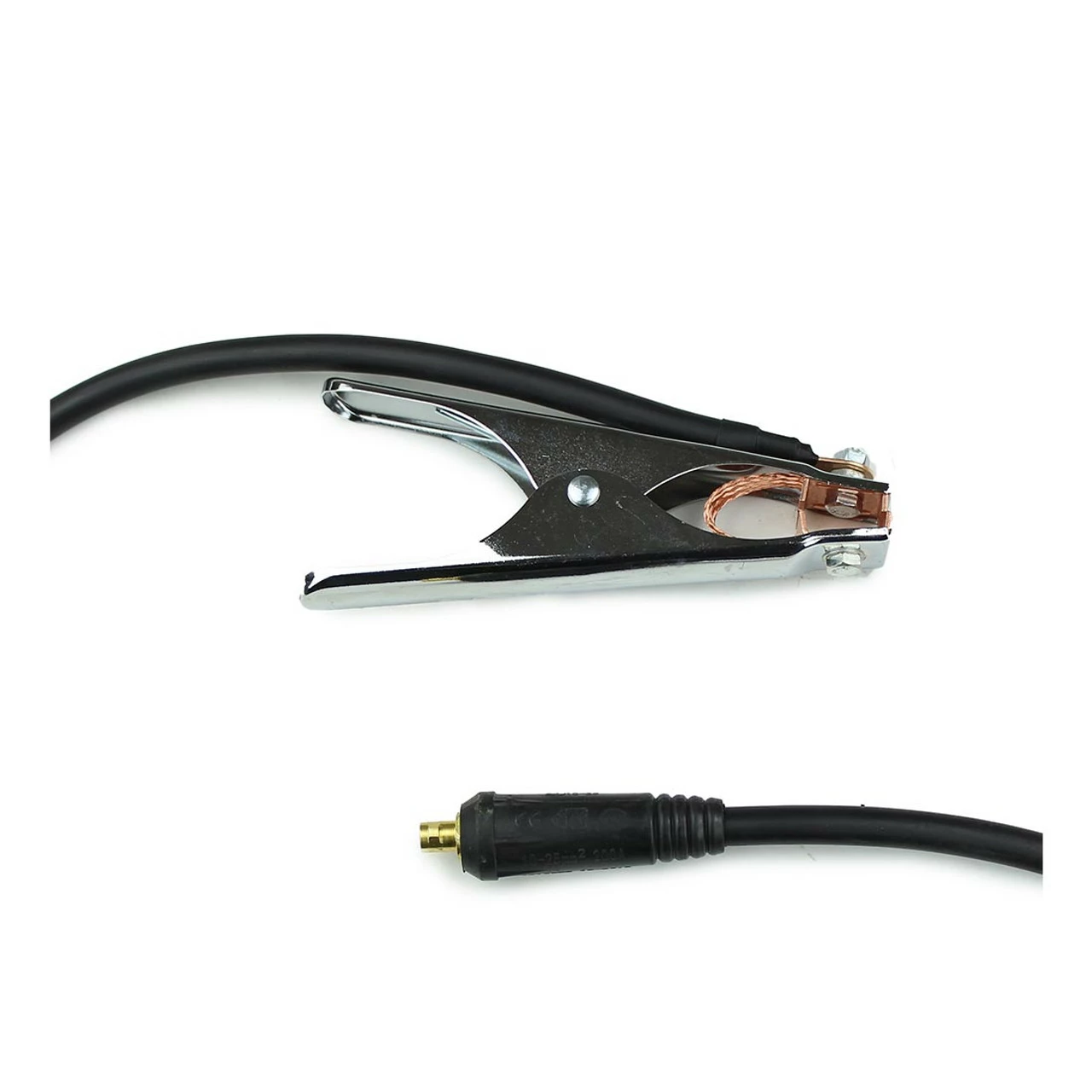

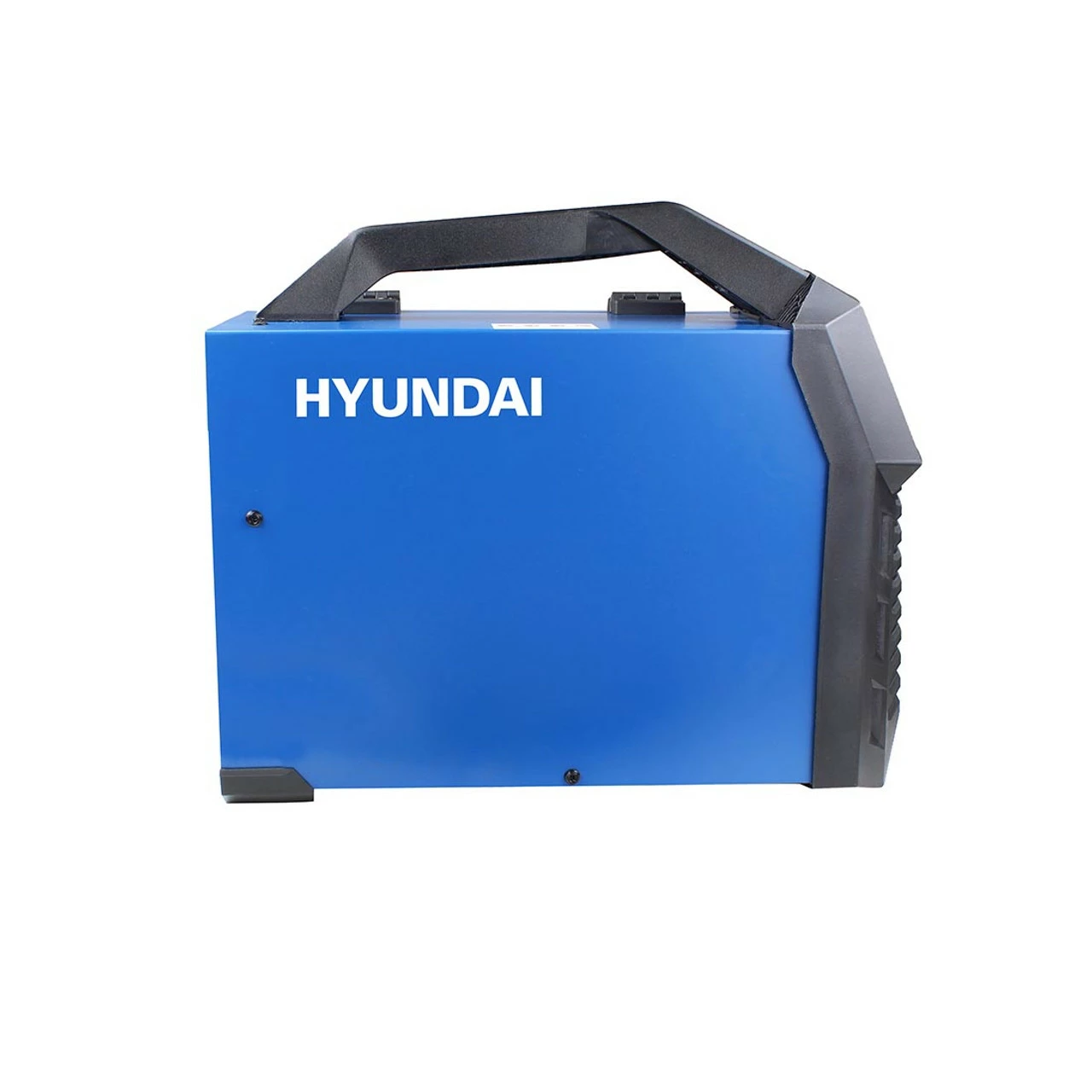

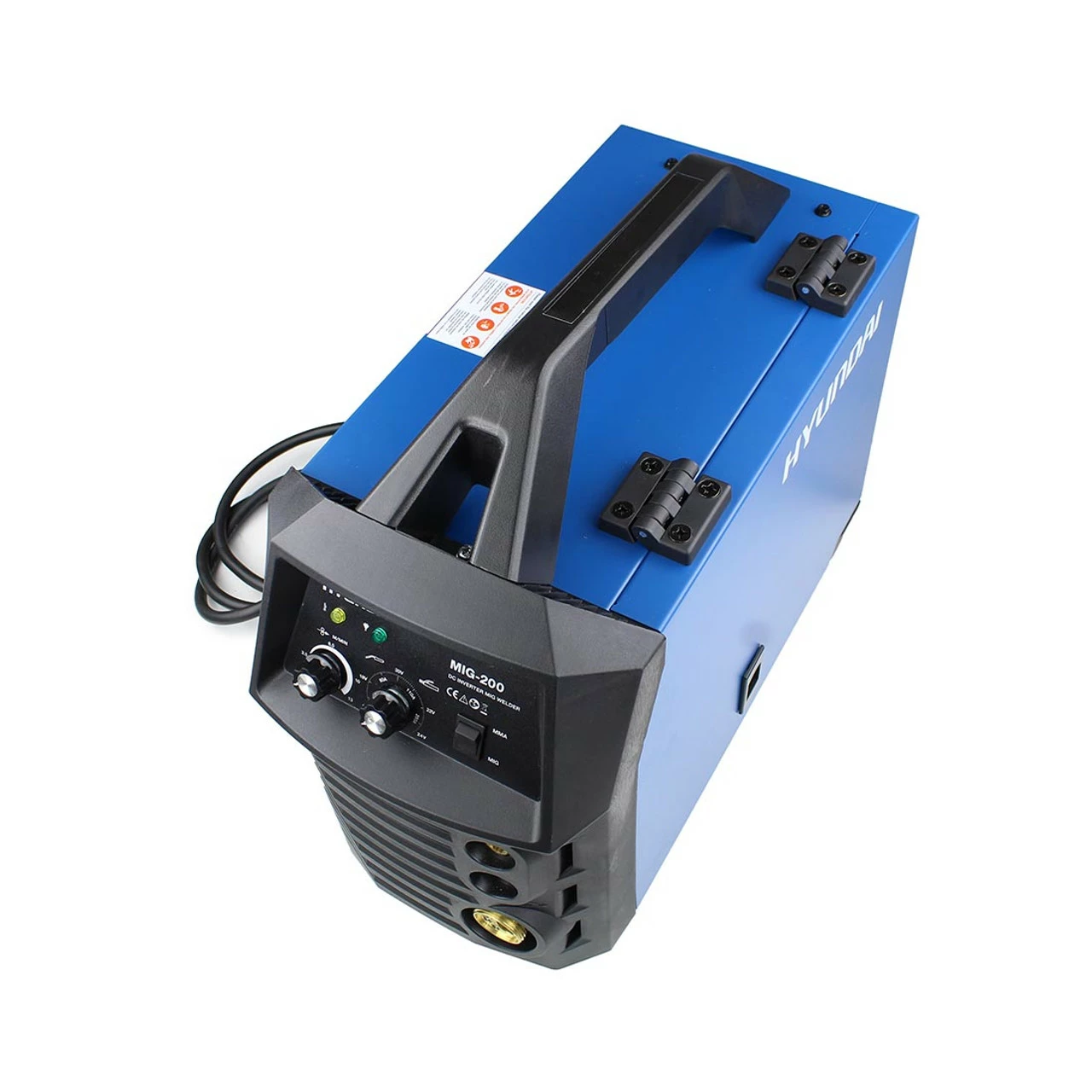

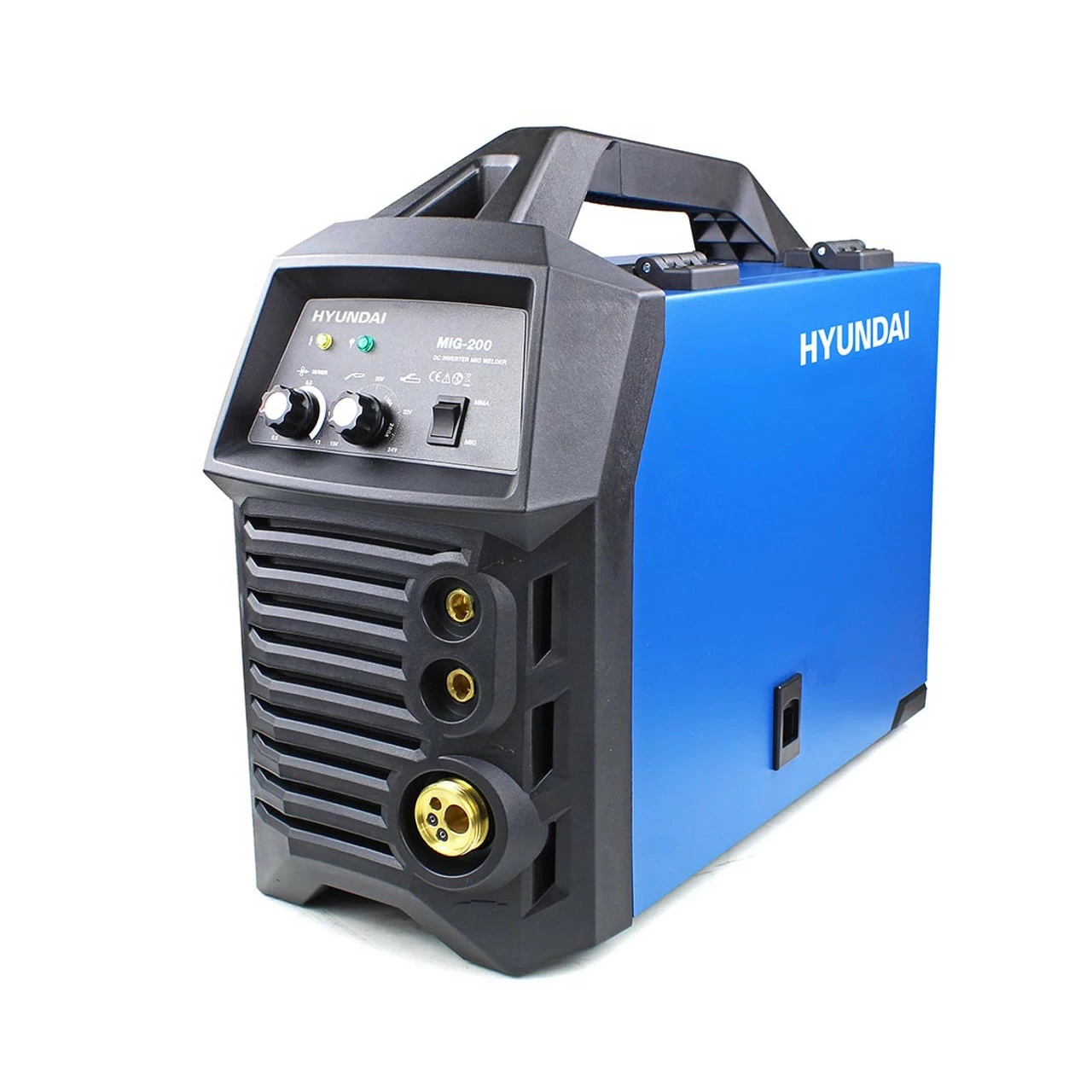

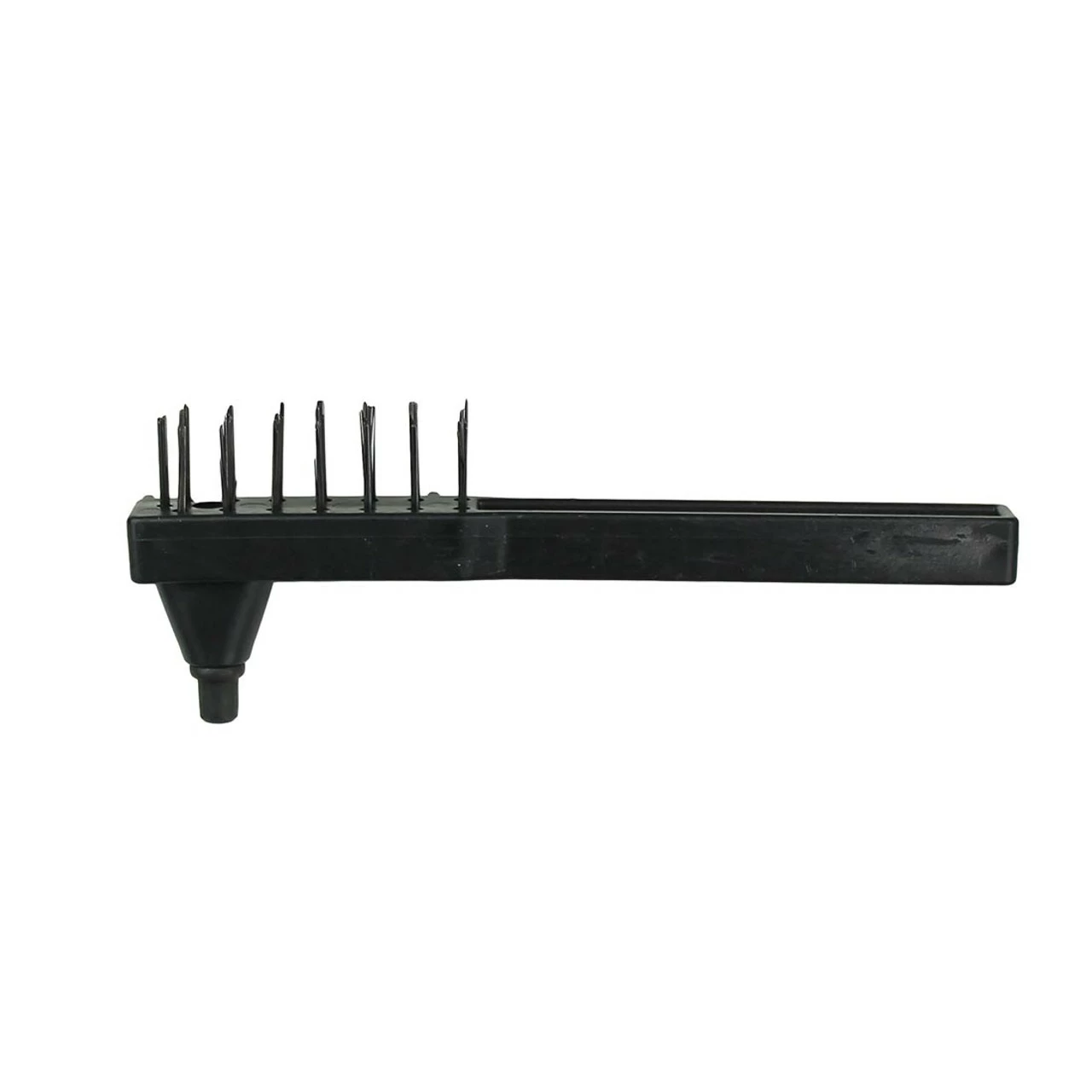

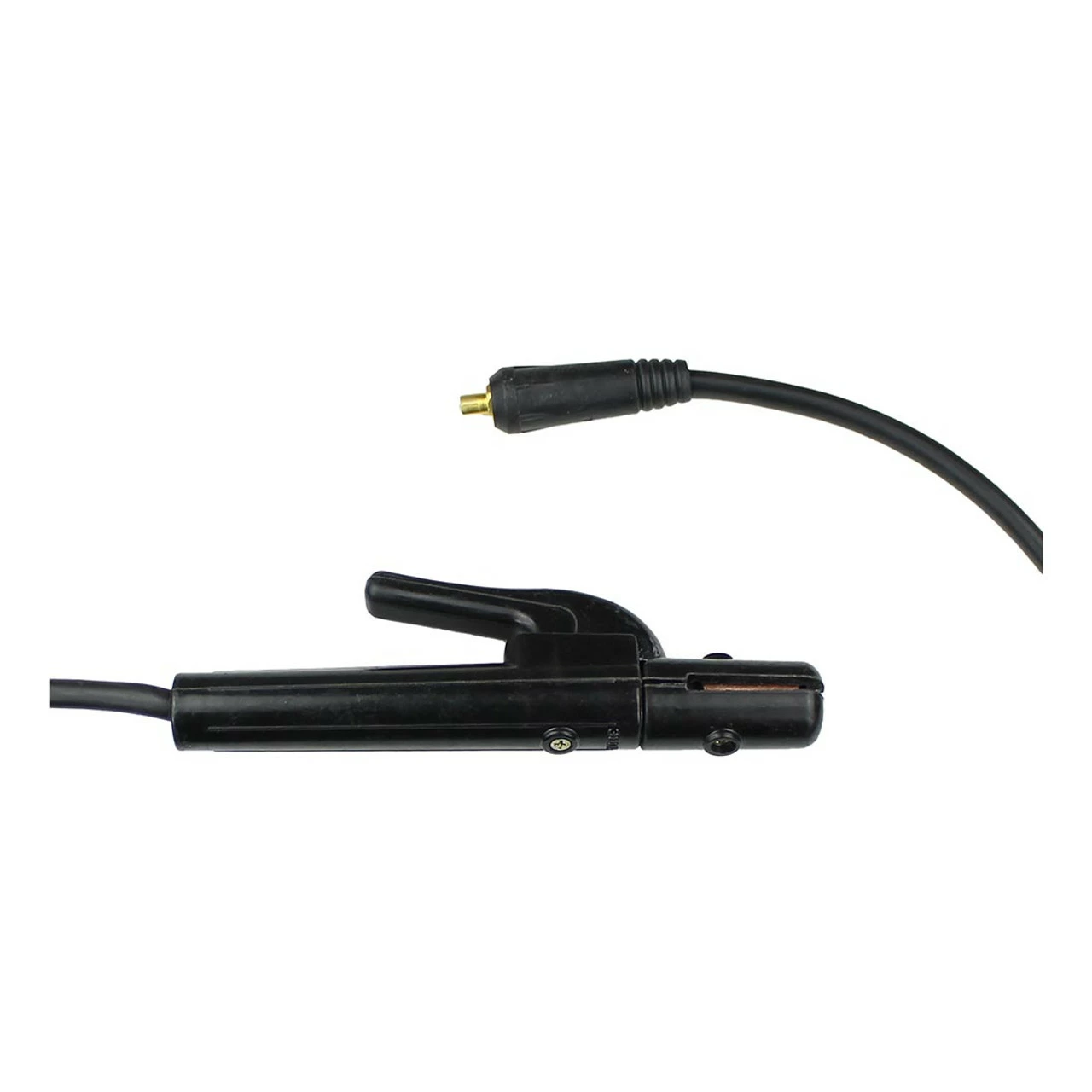

The HYMIG-200 is a lightweight and incredibly versatile single phase MMA MIG welder from Hyundai. The HYMIG-200 is capable of welding mild steel up to 6mm. Weighing only 20kg, this 200 amp MIG welder is easy to carry around thanks to its adjustable harness and lightweight pressed steel case with powder coated finish for extra corrosion resistance. Accessories include electrode holder with 2m cable, earth clamp with 1.5m cable, chipping hammer, face mask and wire brush making the HYMIG-200 extremely cost effective.

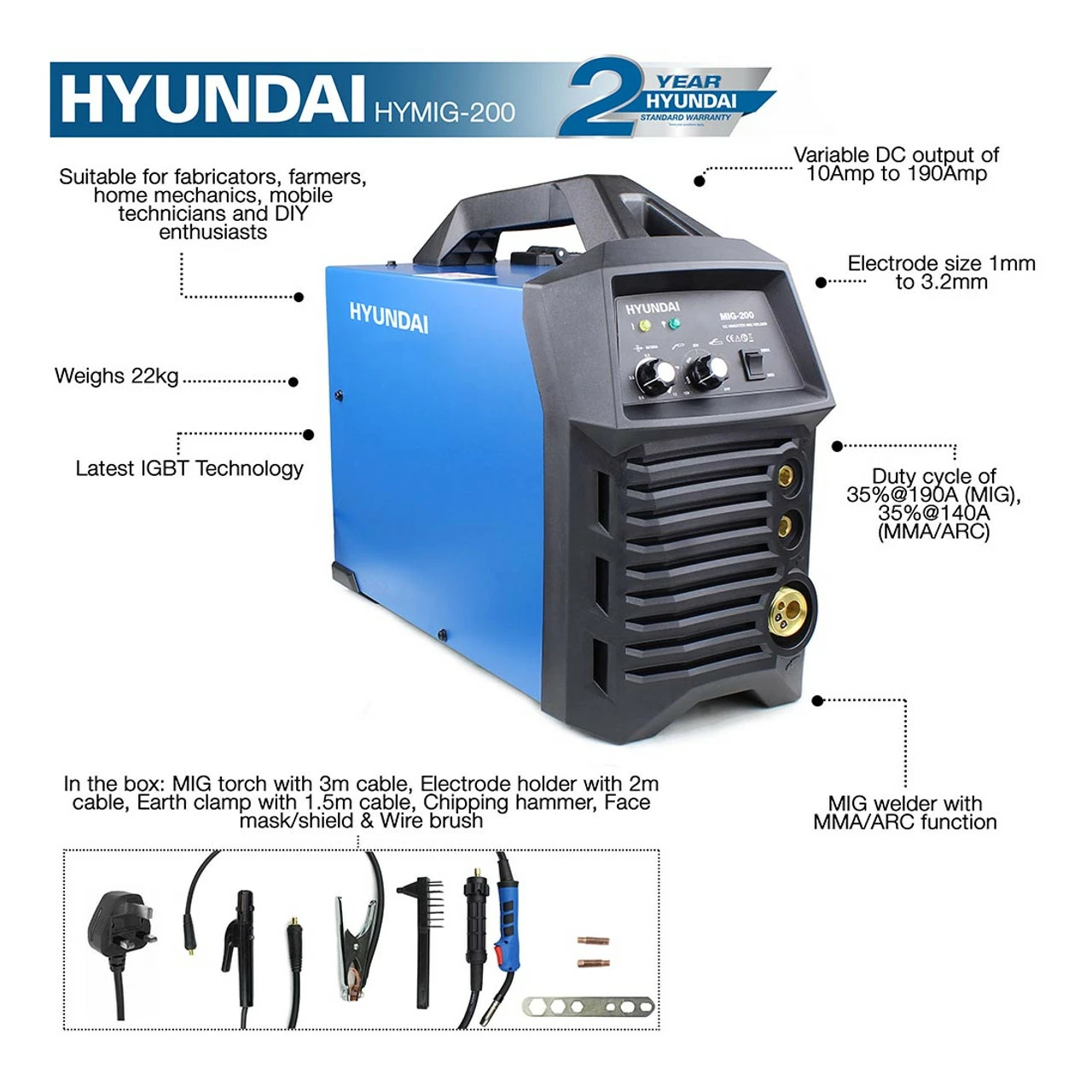

HYMIG200 Features:

• Bestselling MIG Welder with variable DC output of 10Amp to 200Amp
• Electrode size 1mm to 3.2mm
• Duty cycle of 35%@180A (MIG), 35%@140A (MMA/ARC).
• MIG welder with MMA/ARC function
• Latest IGBT Technology (Insulated Gate Bipolar Transistor)
• Thermal overload protection
• Anti-stick and hot start functions include a welding rod holder, earth clamp and cables
• Suitable for mechanics, mobile technicians, farmers and DIY enthusiasts
• Covered by Hyundai UK 2 year warranty.
• Full UK service and parts operation to maintain your welder for years to come

HYMIG200 Specification:

• Current @ 60% (A): 125 (MIG) 120 (MMA)
• Current Range (A): 31.3
• Dimensions (H x W x L) (mm): 540 X 320 X 405
• Duty Cycle (%) Under 40ºC: 35% @ 190A (MIG) 35% @ 140A (MMA)
• Efficiency (%): 85
• Frequency (Hz): 50
• Input Voltage (V): 230
• Max Input (kVA): 7.2
• Model: HYMIG-200
• Net Weight (kg): 20
• No-Load Voltage (V): 65
• Output Current (A): 190
• Power Factor (Cosφ): 0.73
• Rated Output Range (Amps): 50-190
• Rated Duty Cycle MIG: 35%@180A
• Usable Electrode (mm): 0.8-1.0 (MIG) 1.0-4.0 (MMA)

What is included:

• 1x HYMIG200 MIG/MMA(ARC) Inverter Welder 200Amp 230V
