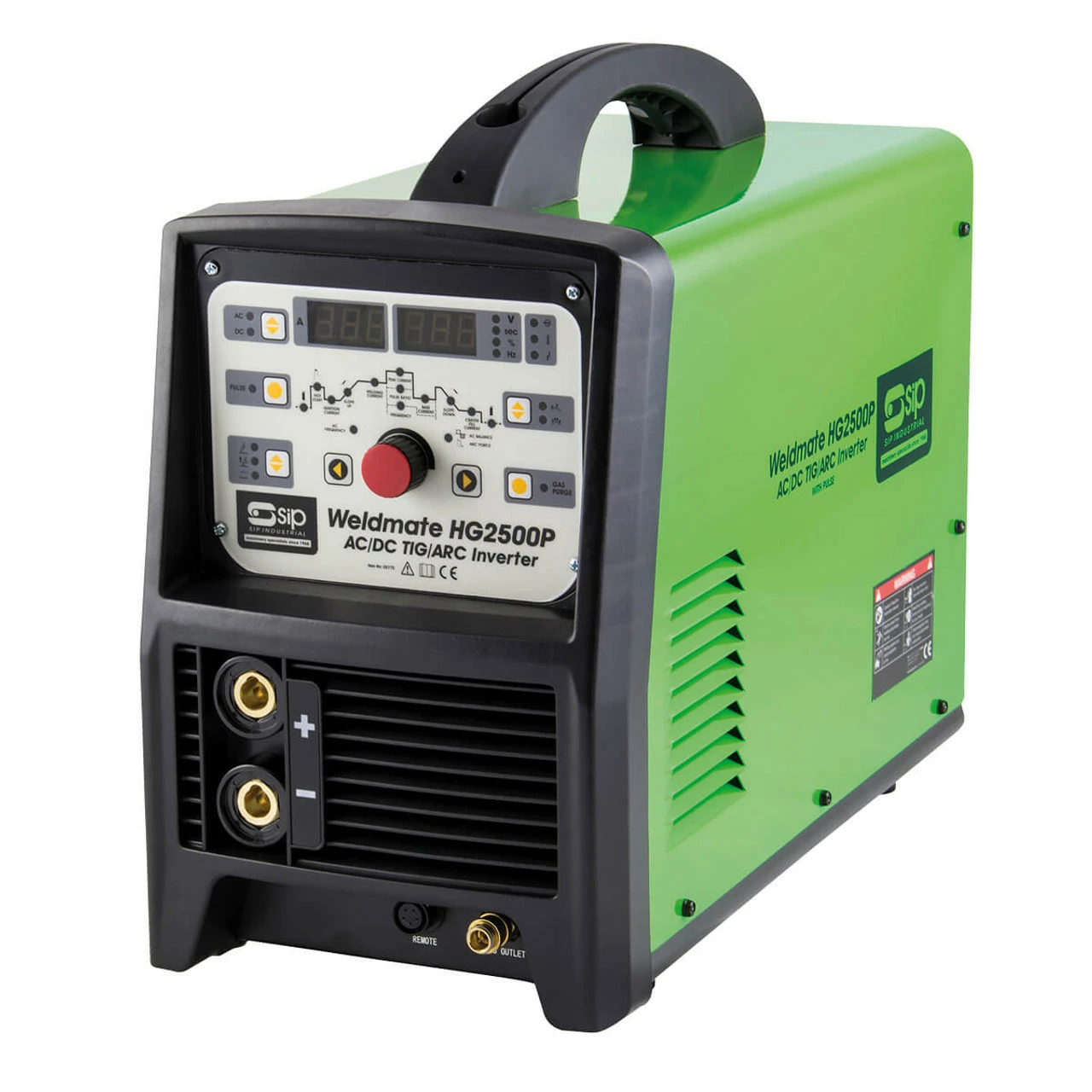

SIP 05770 HG2500P TIG/ARC Inverter Welder

SIP 05770 HG2500P TIG/ARC Inverter Welder

The SIP HG2500P TIG/ARC is a dual-function inverter with an integrated 9-stage parameter adjustment program. With added IGBT and Pulse technologies, it is reliable in all applications.

Features

• 230v (16A) input supply
• 5A – 200A DC TIG output current
• 10A – 200A AC TIG output current
• 5A – 170A ARC/MMA output current
• 1.6mm – 4mm ARC/MMA electrode diameter
• HF TIG/Lift ARC & TIG, MMA ARC processes
• Latest IGBT inverter technology platform
• Super lightweight and generator friendly
• 9-stage parameter adjustment including slope-up/slope down, pre/post gas, AC balance and reliable frequency control
• Optional foot pedal accessory to buy
• Integrated variable TIG pulse facility
• Easy-to-use control panels

05770 Specification

• ITEM NO. 05770
• Input Supply: 230v (16A)
• Output Current: 10A – 200A (AC TIG) / 5A – 200A (DC TIG) / 5A – 170A (ARC)
• Duty Cycle: 200A @ 60% (TIG) / 130A @ 60% (ARC)
• Pulse Facility: Yes
• Foot Pedal: Yes
• Insulation: Class H
• Protection: IP21S

What is included:

• 1 x SIP 05770 HG2500P TIG/ARC Inverter Welder
