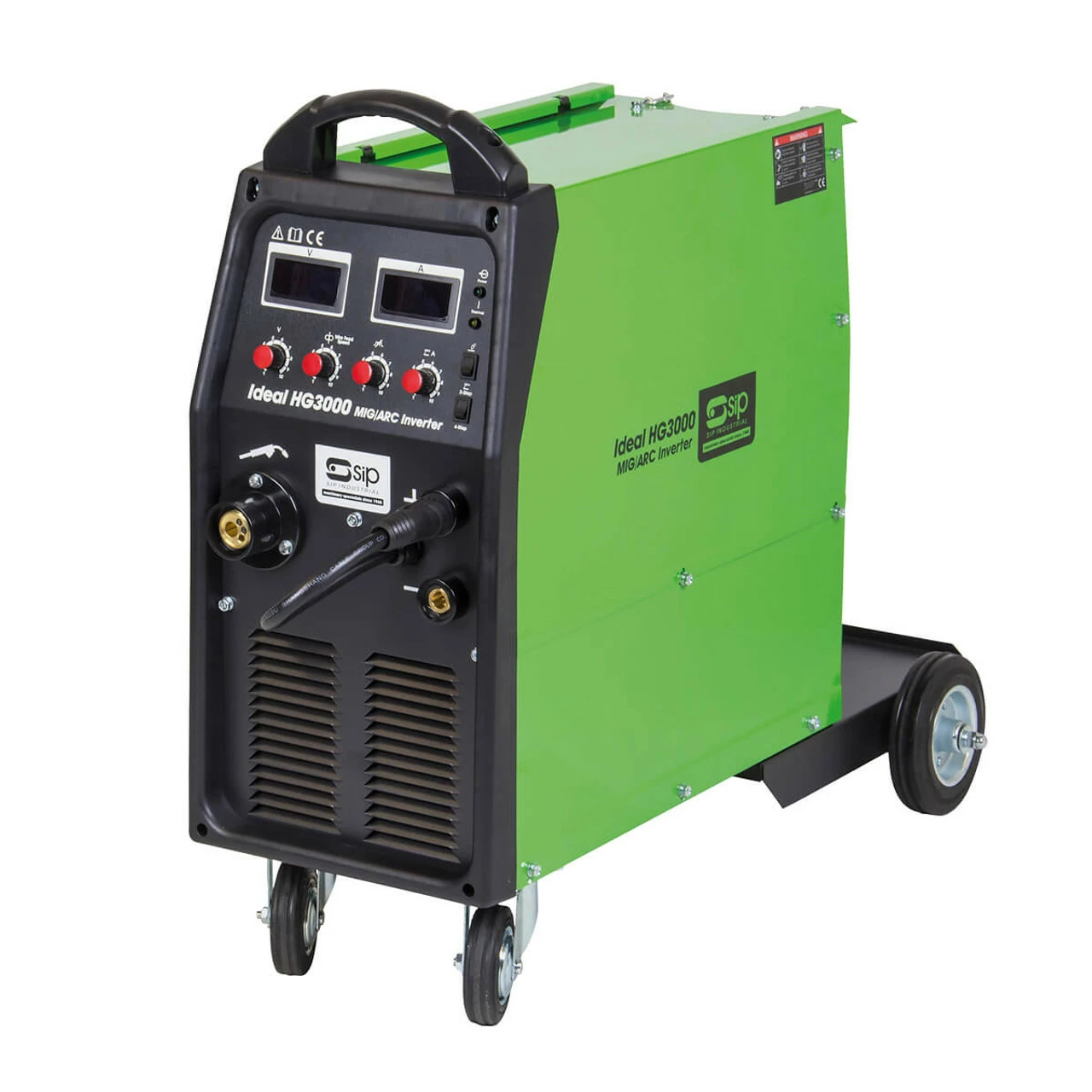

SIP 05772 HG3000 MIG/ARC Inverter Welder

SIP 05772 HG3000 MIG/ARC Inverter Welder

The SIP HG3000 is a heavy-duty MIG/ARC inverter unit capable or prolonged and intense performance. Infinitely variable power output means that it is suitable for a number of applications.

Features

• 230v (43A) input supply
• 50A – 250A MIG output current
• 30A – 200A ARC output current
• 0.8mm – 1mm wire up to 15kg spools
• 1.4mm – 10mm approx. weld thickness
• Infinitely variable power output settings
• Integrated powerful IGBT technology
• Integrated heavy-duty 4-roll feeding
• Burn back adjustment as standard
• 2 touch / 4 touch trigger controls
• Supplied with accessories

05772 Specification

• ITEM NO. 05772
• Input Supply: 230v (43A)
• Output Current: 50A – 250A (MIG) / 30A – 200A (ARC)
• Duty Cycle: 250A @ 60% (MIG) / 200A @ 60% (ARC)
• Welding Volt Steps: Infinitely variable
• Welding Volt Range: 16.5v – 26.5v
• Max. Wire Speed: 20 metres/min
• Wire Size Range: 0.8mm – 1mm
• Insulation: Class H
• Protection: IP21S

What is included:

• 1 x SIP 05772 HG3000 MIG/ARC Inverter Welder
