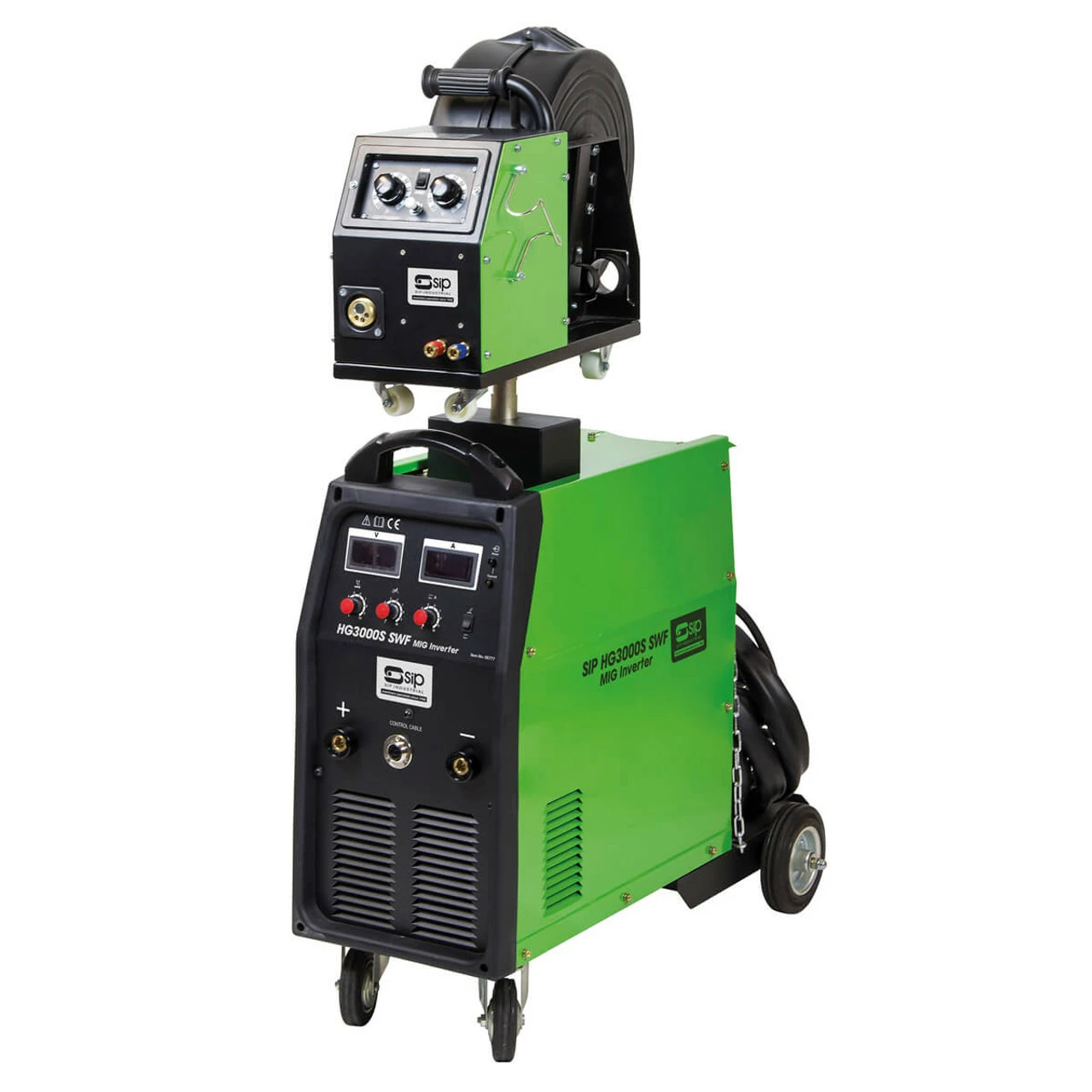

SIP 05777 HG3000S MIG/ARC Inverter Welder

SIP 05777 HG3000S MIG/ARC Inverter Welder

The SIP HG3000S is a heavy-duty MIG/ARC inverter unit capable of prolonged and intense performance. Infinitely variable power output means that it is suitable for a number of applications.

Features

• 230v (43A) input supply
• 50A – 250A output current (MIG)
• 30A – 200A output current (ARC)
• 0.8mm – 1mm maximum wire diameter
• Separate mounted 4-roll wire feed unit
• Integrated IGBT inverter technology
• 2 touch / 4 touch (2T/4T) controls
• 5kg to 15kg wire spool capacity
• Supports standard/Flux wires
• Built-in burnback adjustment
• Supplied with accessories

05777 Specification

• ITEM NO. 05777
• Input Supply: 230v (43A)
• Output Current: 50A – 250A (MIG) / 30A – 200A (ARC)
• Duty Cycle: 250A @ 60% (MIG) / 200A @ 60% (ARC)
• Welding Volt Range: 16.5v – 26.5v (MIG) / 21.2v – 28v (ARC)
• Welding Volt Steps: Infinitely variable
• Max. Electrode Size: 1.6mm – 6mm
• Max. Wire Size: 0.8mm – 1mm
• Insulation: Class H
• Protection: IP21S

What is included:

• 1 x SIP 05777 HG3000S MIG/ARC Inverter Welder
