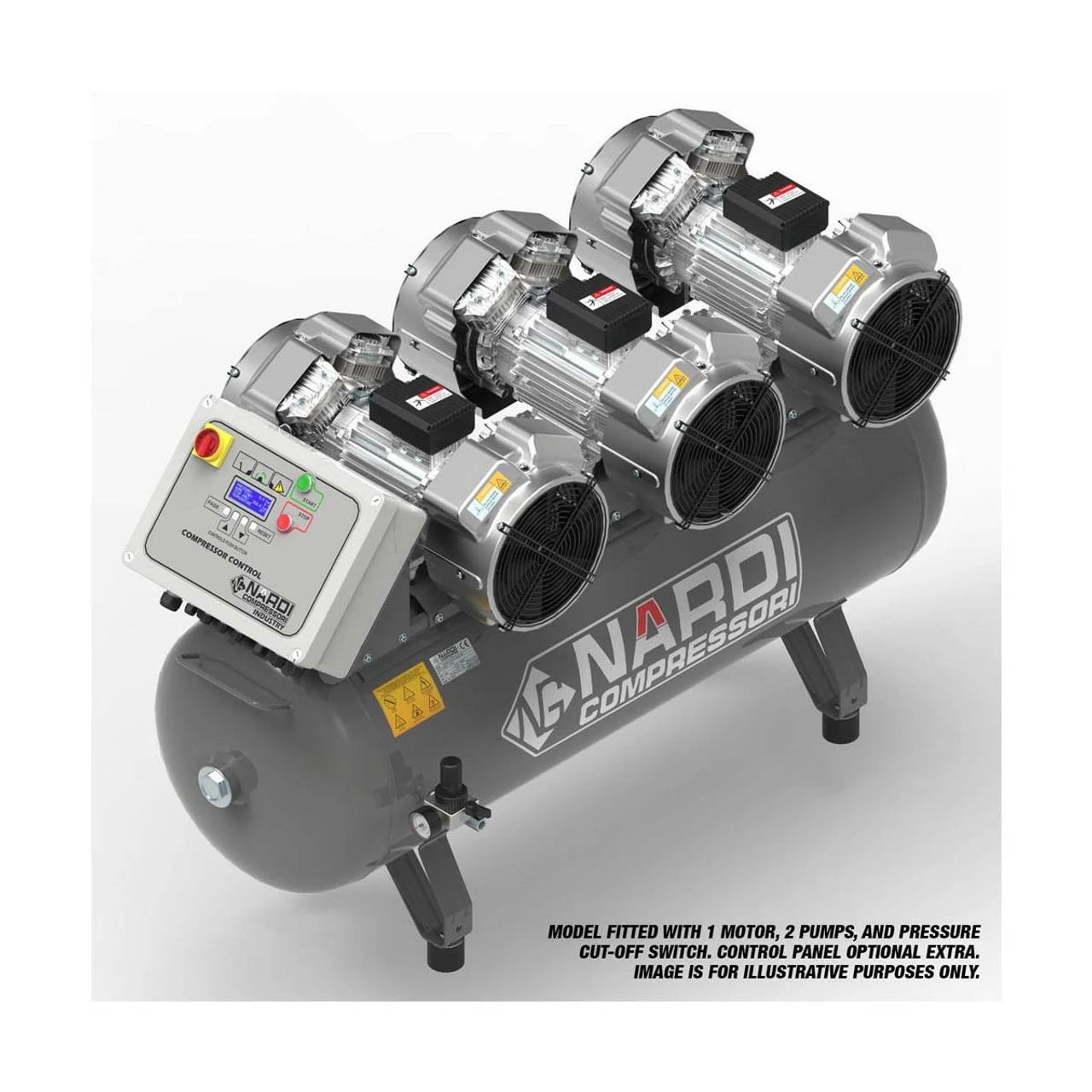

SIP EXTMP27030 Nardi Extreme MP 3.00HP 270ltr Compressor

SIP EXTMP27030 Nardi Extreme MP 3.00HP 270ltr Compressor

The NARDI EXTREME MP 3.00HP 270ltr Compressor offers high performance via V-Twin pumps and 1x 2.20kW slow-running 4-pole motor, plus intake particle diffusion and forced cooling.

EXTMP27030 Features:

• 400v 3-PHASE input supply
• 270ltr receiver; 145psi (10bar) max. pressure
• 1x 2.20kW (3.00hp) 4-pole slow-running motor
• 21.20CFM (600ltr/min) max. piston displacement
• 14.80CFM (424ltr/min) max. free air delivery (FAD)
• High-quality 4-cylinder V-Twin pumps with technopolymer piston rings; oil-free for longer life and low maintenance
• Unique crankcase air intake particle diffusion; reduced air contamination ensuring longer life of the valve plate
• Stainless steel fan-shaped valves for long life durability
• Specially-designed concentric ‘big end’ bearings for reduced vibration and further increased pump life
• For industrial high volume low pressure applications
• Pressure cut-off switch and adjustable air regulator
• Forced cooling for an extended runtime

EXTMP27030 Specification:

• ITEM NO. EXTMP27030
• Input Supply: 400v 3-PHASE
• Motor Power: 1x 2.20kW (3.00hp) 4-POLE 1400rpm
• Receiver Size: 270ltr
• Piston Displacement: 21.20CFM (600ltr/min)
• Free Air Delivery (FAD): 14.80CFM (424ltr/min)
• Max. Air Pressure: 145psi (10bar)
• No. of Cylinders: 4 cylinders
• Noise Level: 73dB(A)

What is Included:

• 1x SIP EXTMP27030 Nardi Extreme MP 3.00HP 270ltr Compressor
